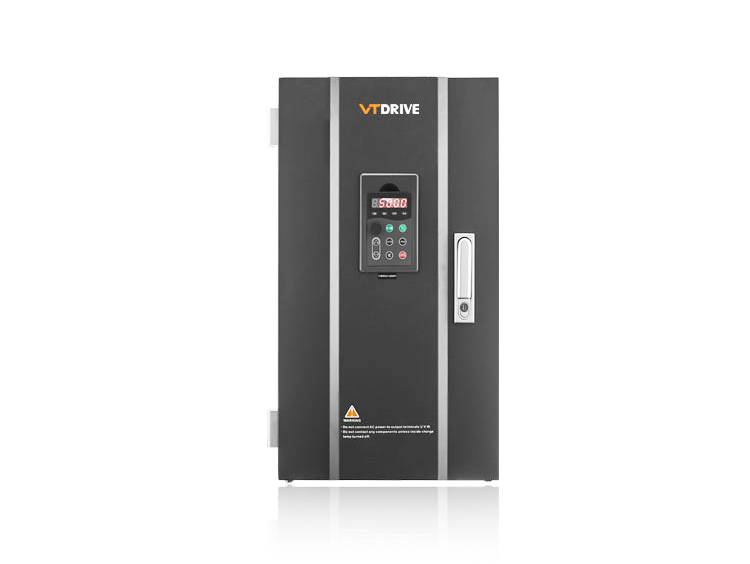

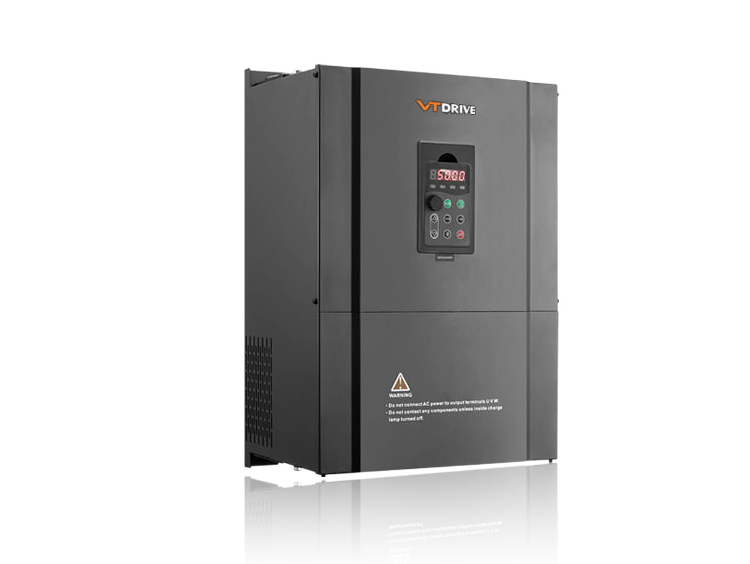

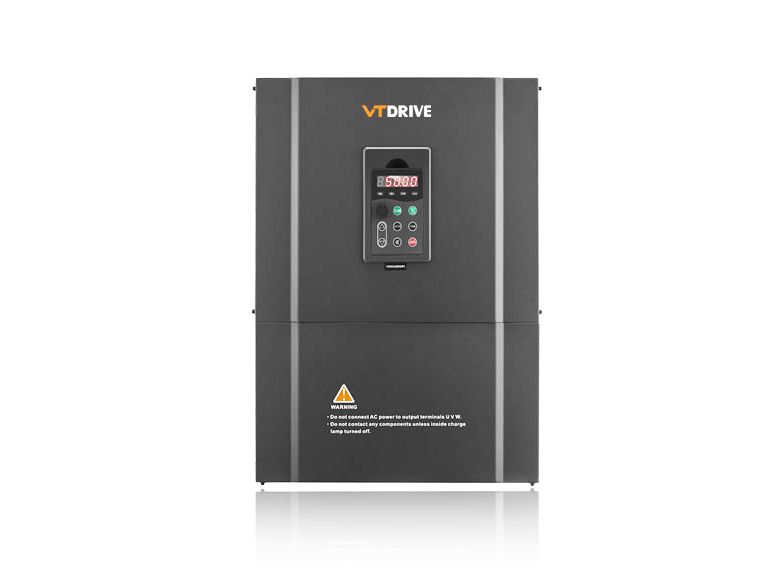

TR510 series high-performance Adjustable Speed Drives
Torrive TR510 series Variable speed drives
IGBT： Infineon & Fuji
CPU: Texas Instruments
PCB: Coated
Protected: IP20
Certification: CE
Model: TR510-T4-022G | TR510-T4-030G | TR510-T4-037G | TR510-T4-045G | TR510-T4-055G
super overload capability
rich and powerful functions
stable performance
Torrive TR510 series inverter is a universal high-performance vector inverter, which is a real current vector control inverter. Based on the control theory of advanced technology, the intelligent speed control system has reached the pole through intelligent control means. The high responsiveness and stability make it possible to really apply freely on various industrial sites. With the integrated module layout, the PCB board traces are simple and reasonable, and the overall reliability is higher and the consistency is better.
Up to 16 segment speeds with built-in PLC or control terminals
Automatically keeps the output voltage constant when the grid voltage changes
Simplified auto-tuning procedure
Dual rated for heavy/normal duty applications
New and more effective trip avoidance functions
Simple position control capability
Side-by-Side installation
Global standards CE
Safe-Stop function
Rated Power: 22~55 Kw
Model: TR510-T4-022G 380V 3PH 22kw Inverters
TR510-T4-030G 380V 3PH 30kw Inverters
TR510-T4-037G 380V 3PH 37kw Inverters
TR510-T4-045G 380V 3PH 45kw Inverters
TR510-T4-055G 380V 3PH 55kw Inverters
Rated voltage: 380V 3phase
Output frequency: 0.0~500 Hz
Control Method: SVC, VF
Speed range: 1:100 (SVC)
colour: Black
Appearance: Molded case
Dimensions: 392x 205x191.3mm & 441x286x207mm
Installation size: 378.3x156.6mm & 425.3x239mm
Steady speed accuracy: ±0.5%(SVC)
Timing control function: time range from 0.0Min to 6500.0Min
Application: Fans, pumps, air compressors, blowers, extruders, compressors,
spinning machines, weaving machines, wool spinning machines, etc.
